Rectangular Blanks

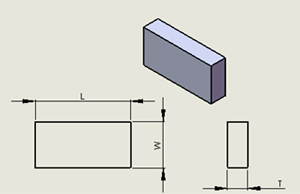

Designation System (a)
| Item Number | Stock Code | Thickness (T) mm |
Width (W) mm | Length (L) mm |
Carbide Grade |
| 6.0X13X25 HM15 | 1 | 6 | 13 |
25 | HM15 |

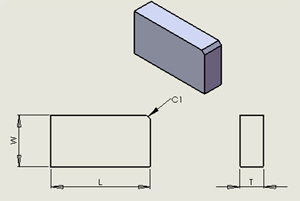

Designation System (b)
| Item Number | Stock Code | Thickness (T) mm |
Width (W) mm | Length (L) mm |
Chamfer (C1) |
Carbide Grade |
| 6.0(C1)X13X25 HM15 |
1 | 6 | 13 |
25 | 1X45° |
HM15 |

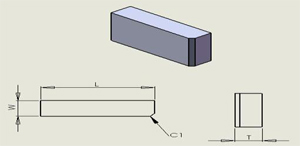

Designation System (C)
| Item Number | Stock Code | Thickness (T) mm |
Width (W) mm | Length (L) mm |
Chamfer (C1) | Carbide Grade |
| 6.0X13(C1)X25 HM15 |
1 | 6 | 13 |
25 | 1X45° | HM15 |

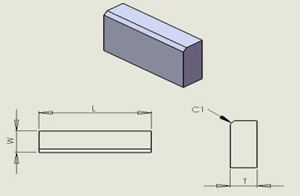

Designation System (D)
| Item Number | Stock Code | Thickness (T) mm |
Width (W) mm | Length (L) mm |
Chamfer (C1) | Carbide Grade |
| 6.0X13X25 (C1) HM15 |
1 | 6 | 13 |
25 | 1X45° | HM15 |
