Shaped Blanks
| Item Number | Stock Code | Description |
Drawing |
| 101L HM11 (OR HM9C, Item class 8) |
1 |
Limestone Saw Tooth-Left |
 |
| 101R HM11 (OR HM9C, Item class 8) |
1 |
Limestone Saw Tooth Right |
 |
| 201L HM11C (OR HM9C, Item class 3) |
1 |
Limestone Saw Tooth- Left |
 |
| 201R HM11C (OR HM9C, Item class 3) |
1 | Limestone Saw Tooth-Right |
 |
| 2.0X10X65(C2.0) HM9 | 8 | Shaped Blank |  HM9.jpg) |

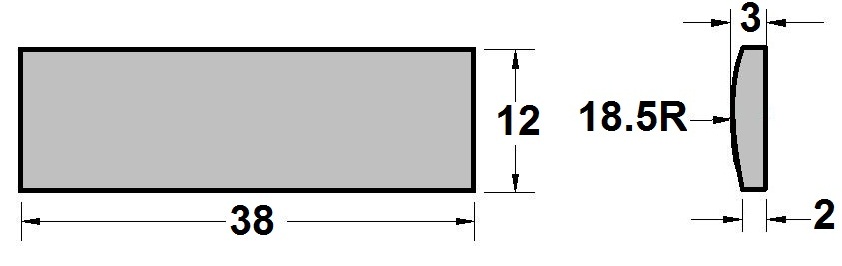

| 2.0X12(R18.5)X38 HM9 |
1 | Shaped Knife Point Blank |
X38HM9.jpg) |

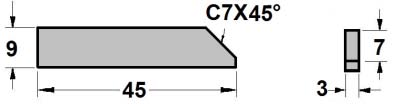

| 3.0X9.0X45-C7 HM9 |
1 | Shaped Blank |  |
| A1000 HM9 | 1 |
Shaped Blank |  |
| A1000-30 HM9 | 8 |
Shaped Blank |  |
| A1000-50 HM9 | 8 |
Shaped Blank |  |
| A1000-50R HM9 | 1 | Scraper Blank- DDO |
 |
| AS5.0X5.0X5.0 HM9 | 1 | Shaped Blank- Triangular Prism |
 |

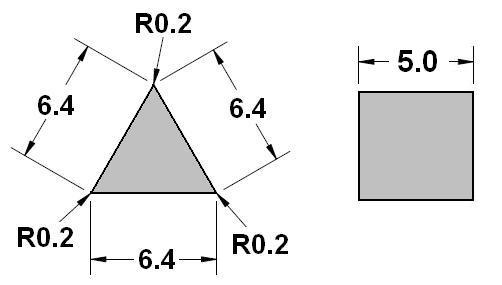

| AS5.0X6.4X6.4 HM9 | 3 | Shaped Blank- Triangular Prism |
 |

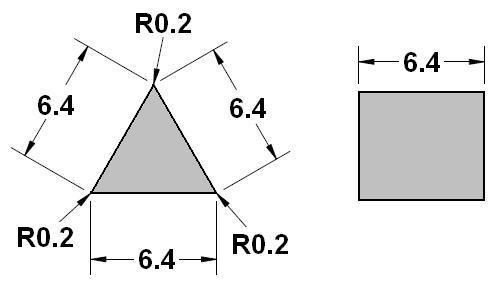

| AS6.4X6.4X6.4 HM9 | 1 | Shaped Blank- Triangular Prism |
 |
| AT4X13X17.5 HM9 | 3 |
Shaped Blank- Auger Tip |
 |
| D0200 HM8C | 1 | Shaped Blank- Triangular |
 d |
| D1609 HM9 (OR HM8C, Item class 1) |
1 |
Shaped Blank (Diamond) |
 |
| EM6 HM8C | 1 | Shaped Blank- EM6 Tip |
 |
| EM8L HM8C | 1 | Shaped Blank- L/H Centre Bit Tip |
 |
| EM8R HM8C | 1 |
Shaped Blank- R/H Centre Bit Tip |
 |
| FD-01A HM9 | 1 |
2174385 Debarking Insert |  |
| FD-02A HM9 | 1 |
2174386 Debarking Blank |  |
| FD-03A HM9 | 1 |
2174385 Debarking Insert |  |
| FD-04A HM9 | 1 |
2174388 Debarking Blank |  |
| FF4.5X13X25 HM9 |
1 | Rectangular Blank- Tapered |  |
| FF4.5X17X25 HM9 |
1 | Rectangular Blank- Tapered |  |
| FF4.5X19X25 HM9 |
1 | Rectangular Blank- Tapered |  |
| FW3X6X10 HM8C |
8 | Trencher Blade Blank |  |
| FW8B HM11C | 1 | Shaped Blank- Em4 Rock Tip |
 |
| FW8B-16 HM11C | 1 | Shaped Blank- Rock Tip W=16 |
 |
| FW8B-19 HM11C | 1 | Shaped Blank- Rock Tip W=19 |
 |
| FW8B-19X17.5 HM15 |
8 | Shaped Blank- HD W=19 |
 |
| FW8B-24X17.5 HM11C |
1 | Shaped Blank-XHD Rock Tip W=24 |
 |
| FW8B-R7 HM11C |
1 | Shaped Blank- Radiused FW8B |
 |
| FW8S-22.5X12 HMA11C |
1 | Shaped Blank- HD Slotted Rock Tip |
 |
| GA4.75X11.5X38.5R125 HMK20 |
1 | Shaped Blank- Gin Rib Insert |
 |
| GA4.75X11.7X38.1 HM6 | 1 | Shaped Blank- Gin Rib Insert |
 |
| HP3.0X10X16 HM9 | 1 | Shaped Blank-35 Ser Tooth Insert |
 |
| HB250-1 HM11 | 1 | HB250 Road Stabilizing Outer Blank |
 |
| HB250-2 HM11 | 1 | HB250 Road Stabilizing Centre Blank |
 |
| KS3.2X7.5X12.7 HMA9C | 3 | Kalex Shoe Insert |
 |
| LC5X13X21.4 HMA10C | 1 | Limestone Cutting Blank |
 |
| LC6.0X17X23-20 HM9C | 1 | Limestone Cutting Blank |
 |
| P1656 HM10 | 1 | Shaped Blank- 1656 Tooth Insert |
 |
| P1656-A HMA9C | 1 | Shaped Insert- 1656 Insert |
 |
| MT25FW HM9 | 8 | Mulcher Tool insert |  |
| MT25SQ HM9 | 8 | Mulcher Tool insert |  |
| RC20X27X30 HMA13C | 1 | Shaped Blank- Rock Crusher Blank |
 |
| SC-04 HM8C | 1 | Shaped Blank- Stump Grinding Insert |
 |

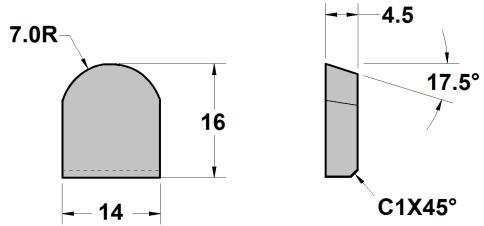

| SC-04.5 HM9 | 8 | Shaped Blank- Stump Grinding Insert |
 |
| SR1221 HM8C | 8 |
Shaped Blank- SR1 Stump Cutter Insert |
 |
| SS1000-L40 HM8C | 1 | Shaped Blank- CSN Seeder Tip L=40 |
 |
| TBB-10 HM11C | 1 |
Single Cone Insert D=10mm |
 |
| TBB-12DCI HMA7C | 1 |
Double Cone Insert D=12mm |
 |
| TBB-16DCC HMA9C | 1 |
Double Conical Cap (TBB-CP23E) |
|
| TBB-18BC HMA9C | 3 |
Standard Bell Cap |  |
| TBB-24BIX43 HM11C | 8 |
Ballistic Insert D=24mm, L=43mm |
 |
| TBB-19PI HMA9C | 1 | Single Cone Insert (r3x70) |
 |
| VK-1 HM12M | 1 | Valenkone Debarking Blank Replacement Insert |
 |
| VK-2 HM12M | 1 | Valenkone Debarking Blank Replacement Insert |
 |
