Wear Protection Weld on Teeth
| Part Number | Stock Code | Description |
Drawing |

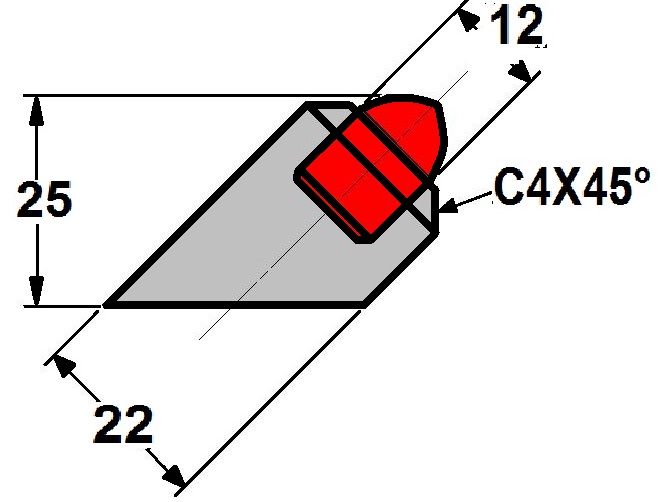

| WT1225-45 (HDD-12DCI-25-45) |
1 |
Weld On 12mm Insert Tooth H=25mm |
 |

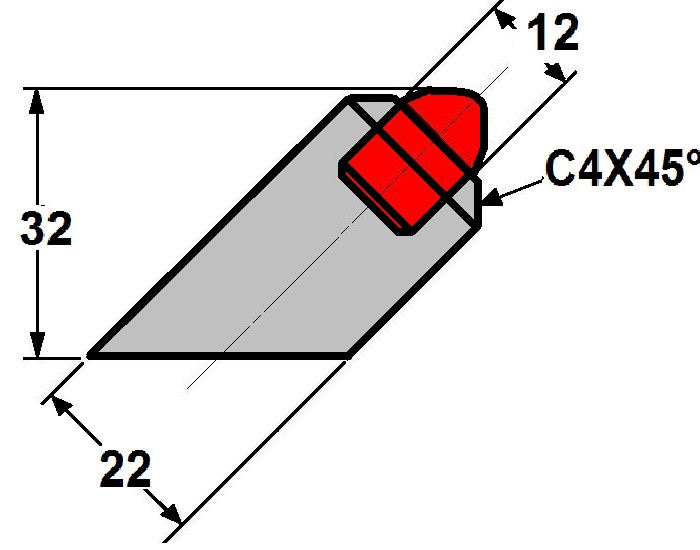

| WT1232-45 (HDD-12DCI-32-45) |
1 |
Weld On 12mm |
 |

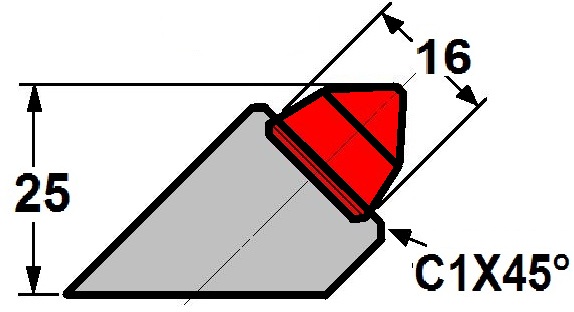

| WT1625-45 (HDD-16DCC-25-45) |
1 |
Weld On 16mm Cap Tooth H=25mm |
 |

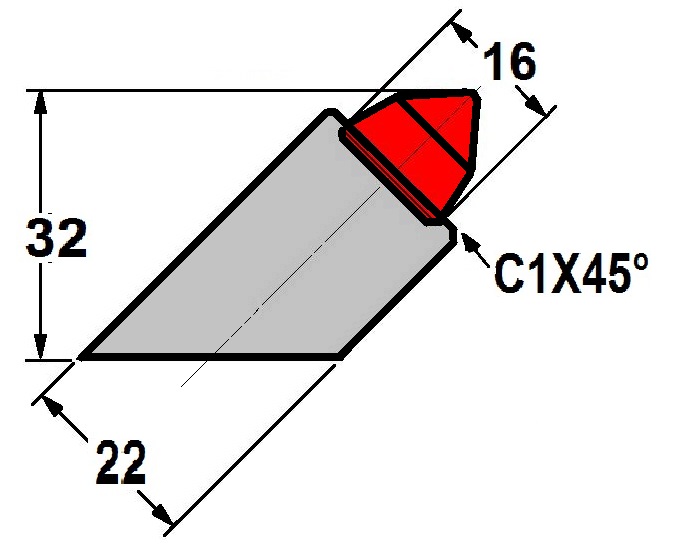

| WT1632-45 (HDD-16DCC-32-45) |
1 | Weld On 16mm Cap Tooth H=32mm |
 |
| WT1633-90 (HDD-16DCC-33-90) |
1 | Weld On 16mm Cap H=33mm Angle=90 |
 |

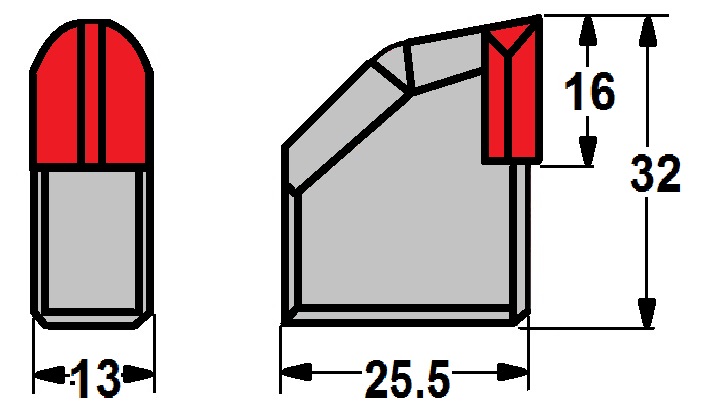

| EM405-S |
1 |
Weld-On Tooth - W=13, H=32 |
 |

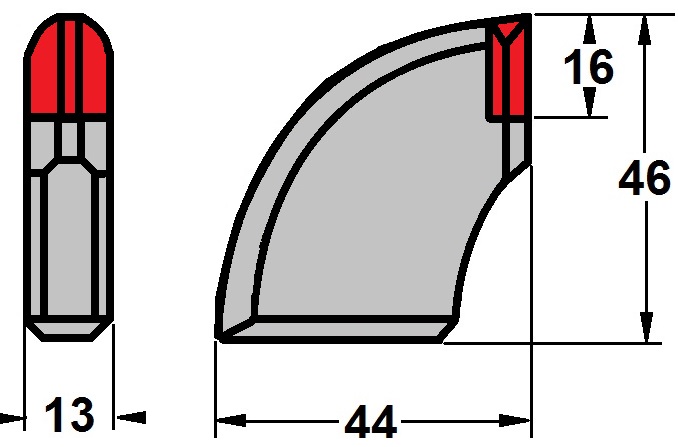

| EM405 | 1 | Weld-On Tooth - 90° W=13, H=46 |
 |

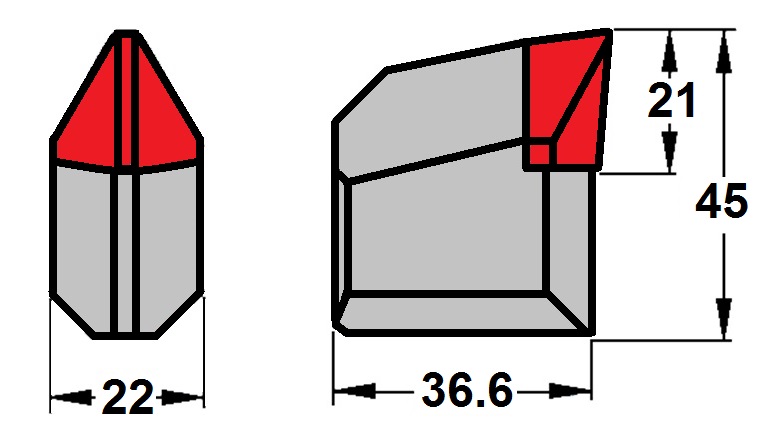

| EM405-22 | 1 | Weld-On Tooth - W=22, H=45 |
 |

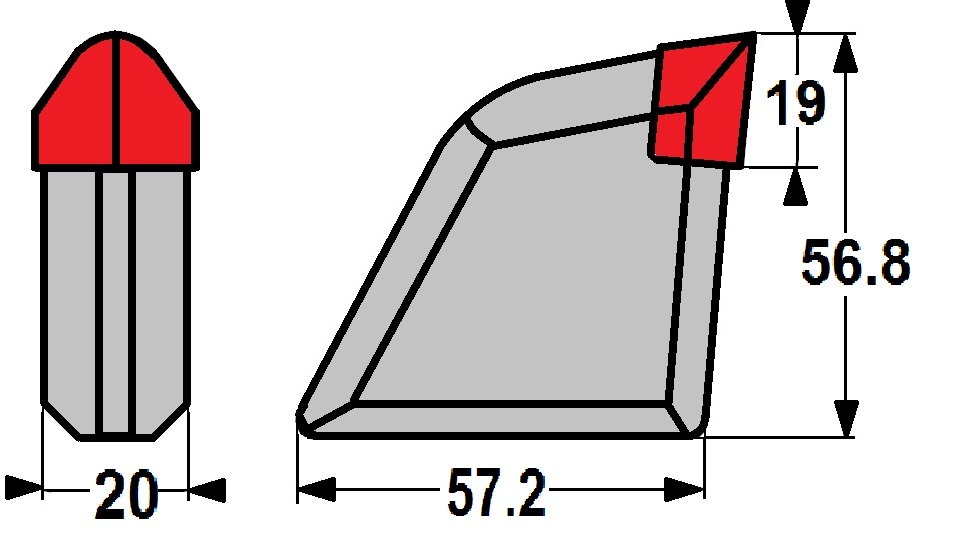

| EM405-22L | 1 | Weld-On Tooth - W=22 H=57 |
 |
